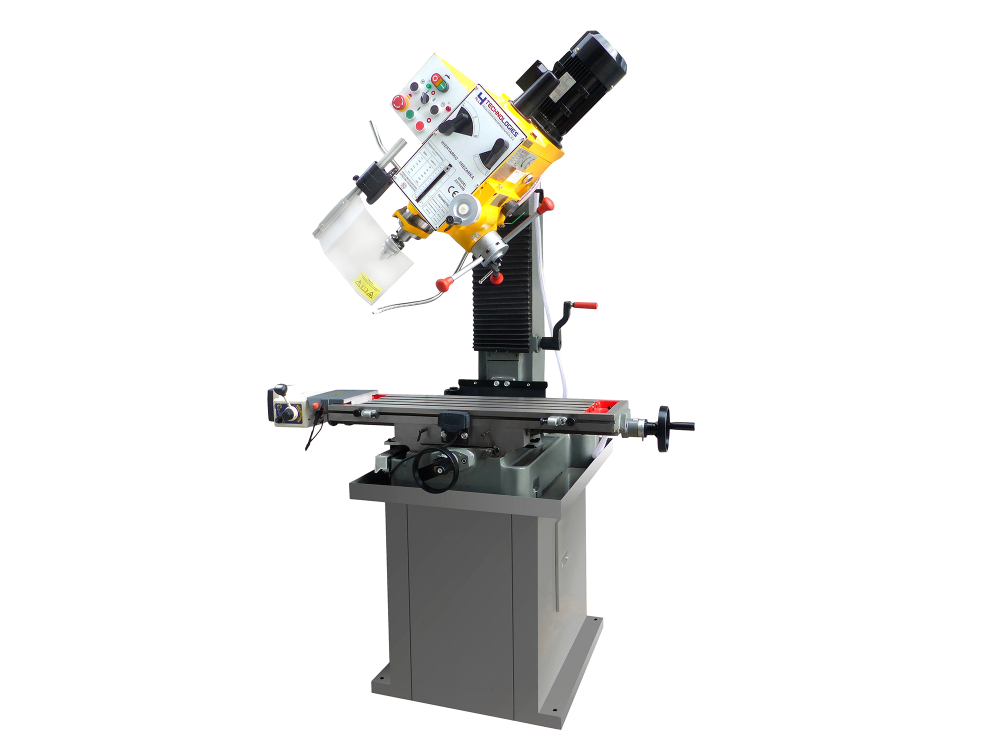

BRAND NEW
gear head auto - feed
Drilling & Milling Machine
FULLY INDUSTRIAL MACHINE!
model ZX 7045B
Characters:
The machine spindle can auto-feeding, micro-feeding and hand-feeding.
Spindle speed change and feeding speed change easiness.
This machine use gear driving system and it is driving moment is strong enough to drilling, reaming and milling at all kinds materials.
The motor was driving by gear which overcome
the short coming of belt driving.
The working scope is large enough for spindle head not only up and down.
Machine with coolant system.
Technical data:
MODEL | ZX7045B |
|---|---|
Spindle taper | MT 4 |
Swivel headstock | 45 ° |
Max.Drilling capacity | 45 mm |
Diameter of vertical milling | 28 mm |
Max. face mill capacity | 80 mm |
Spindle feeds | 0.12, 0.18, 0.25 mm / r |
Distance spindle axis to column generating line | 260 mm |
Max.Distance spindle nose to table | 475 mm |
Spindle travel | 110 mm |
Dimension of worktable surface | 820 x 240 mm |
Table travel | 540 x 170 mm |
Spindle speeds range | 50-1250 r / min (6 speeds) |
Motor | 1,5 kW |
Voltage | 230 V |
Weight | 350 kg |
Packing dimension | 860 x 740 x 1160 mm |
Standart accessories | Reducer sleeve MT4/MT3 MT3/MT2 Drill chuck 3-16mm/B18 Spindle chuck MT4/B18 |
