BRAND NEW
FULLY INDUSTRIAL

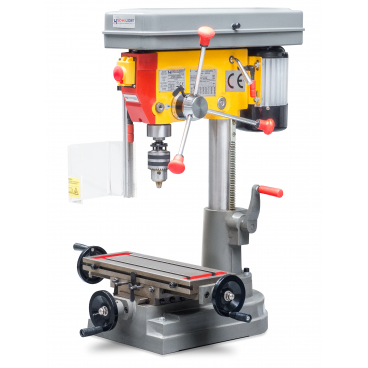

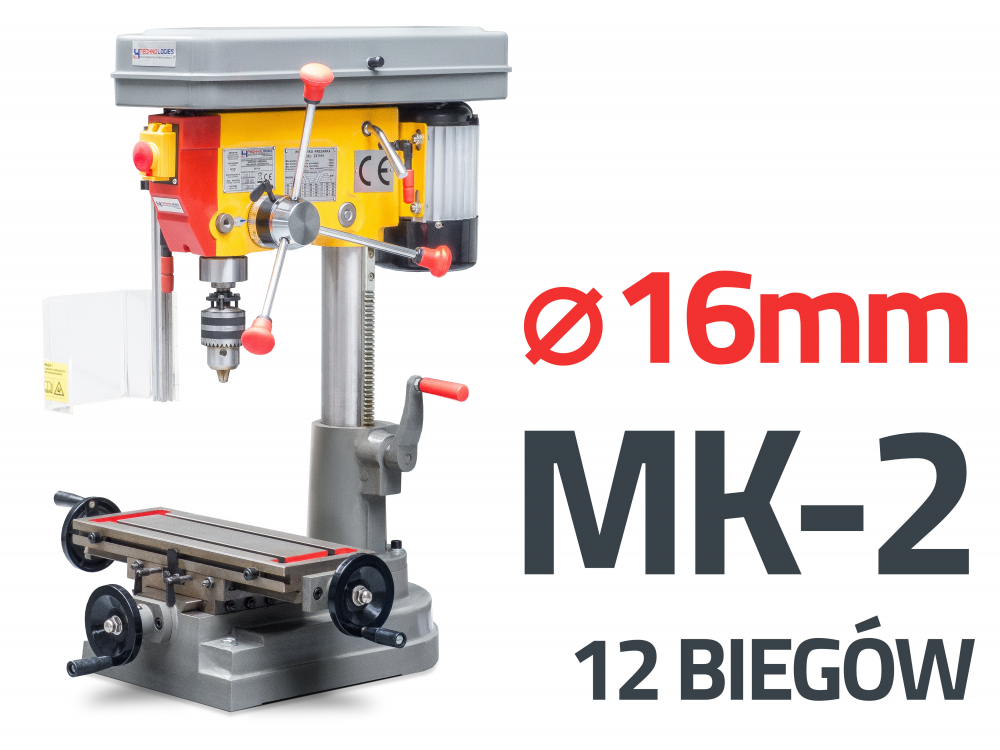

DRILLING & MILLING MACHINE
MODEL: ZX7016
VOLTAGE: 400V
A simple in use drilling milling machine, suitable for education or home
workshop applications as well as professionals. ZX7016 comes in response
to popular demand for a smaller workshop machine
- with no compromise on quality.
Features include:
Head swivels 360º
Adjustable gibs on table
Adjustable stops on table
Straightforward belt drive mechanism
Robust construction
Extra wide cross table
Chuck Arbor Bolt provides tightening of drilling chuck through the spindle
Rack and pinion feed for drilling operations
Safety guard with microswitch according to EU-requirements
Available in metric leadscrews
START / STOP switch incorporates emergency STOP
 |  |
| BELT COVER INCL. MICROSWITCH |
SPECIFICATION:
| Voltage [V] | 400V (3-phase electric plug) |
| Morse taper | MT2 |
| Max. drilling diameter [mm] | 16 |
| Max. face milling capacity [mm] | 40 |
| Max. diameter of vertical milling [mm] | 10 |
| Speed range | 320-3300 r/min (12 gears) |
| Spindle stroke [mm] | 80 |
| Dimension of worktable surface [mm] | 420x152 |
| Table travel [mm] | 230x150 |
| Distance spindle axis to column generating line [mm] | 182 |
| Distance spindle nose to table [mm] | 360 |
| Motor power [kW] / [HP] | 0,55 / 0,75 |
| Dimensions [mm] | 650x580x900 |
| Weight [kg] | 75 |
Standard equipment:
Drawbar
13mm drill Chuck
Arbor for drill chuck
Tool box and maintenance tools
Operation manual and spare parts list
EVERY MILLING MACHINE WE SUPPLY IS FULLY CHECKED AND TESTED
BY A MEMBER OF OUR QUALIFIED TEAM PRIOR DISPATCH
WE RECOMMEND YOU TO BUY AN ORIGINAL ZX7016 STAND STRICTLY
DEDICATED TO THIS MODEL (OPTIONAL ACCESSORIES)
The machine assembled on stand (presentation):
Stand dimensions: 630 x 450 x 630 mm
